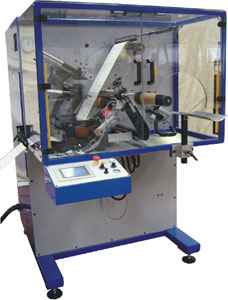

The Daco 3 – inline turret rewinder
The Daco 3 series inline turret rewinder is a very flexible converting machine. The 3 spindle turret offers quick change over times, which coupled with a touch screen HMI operator interface makes the machine both interactive and user friendly.
The operator can select from either length or a given number of labels per roll and the machine will then automatically cut and transfer the web without stopping. The finished rolls are automatically ejected from the machine automatically leaving the operator only to load cores.
When used inline the machine can be simply positioned at the end of any rotary press, (no inter-linking is required), and with just an electrical and pneumatic supply it is ready for production.
There is a host of optional equipment which enables you to specify a very adaptable converting line.
- Web widths 330mm (13″) or 410mm (16″).
Standard Features
- Turret Rewind – 3 Position.
- Max rewind diameter: 350mm (13.75″).
- 3 x 76mm (3″) diameter quick change air shafts with auto inflate and deflate (or 3 of customer choice).
- Merobel electromagnetic particle clutches.
- Automatic taper tension control - automatic tension control.
- Adjustable core positioning device – ensures accurate loading of cores onto the mandrel.
- Holt melt core gluing system – 5 glue transfer wheels.
- Hot melt tail gluing.
- Automatic roll ejection system – enables easy removal of the finished rolls by the operator.
- Lead screw adjustment with guages for all settings for quick make ready.
- Count Facility
- Labels
- Linear – metres & feet
- Touch Screen Operator Interface
- Shows machine status – system messages, interlocks not met etc
- Quick and easy job set ups
- Counting options
- Tension settings
- Allows for easy and quick jobs set ups
- Speed
- 150m (492 ft) minute
- 25-38mm (1″- 1.5″) air shafts – 100m (328 ft) minute
- Fastest cycle time: 20 seconds / 3 cycles per minute
- Run Hour Meter
- Solid construction – built on a 3mm (0.118″) cabinet with a precision ground steel 16mm (0.62″) main plate.
- Conforms to CE regulations and all circuits use dual channel safety switches, which are continuously monitored using a certified safety relay.
